Microscope for Observing Inner Wall of Holes
360° Single-shot Observation of Inner Walls! It can even go up to 100mm deep!
● Lens ideal for observing the inner surface of a hole with a 360° field of view
● Uses lighting ideal for observing the inner walls of holes with diameters of 50mm to 100mm
● Uses a lens with a deep depth of field ideal for observing holes. In addition, the lens has an aperture, so the depth of field can be adjusted.
● The fisheye effect allows you to observe the inner wall in a wide range in one shot.
A recorder (optional) for saving still images and videos is also available.
*Monitor not included.
Observation Cases
1. Ideal for observing small holes with diameters of 50mm to 100mm and up to 100mmH

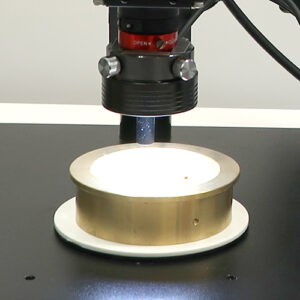

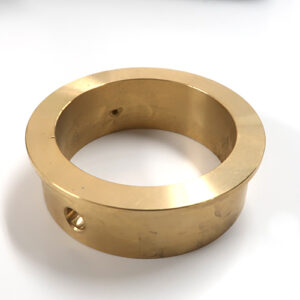

●Observation of the inner wall within a φ50mm flange
| Observation Range: Narrow |
Observation Range: Wide |
| Depth of Field (Distance with simultaneous focus): Shallow |
Depth of Field (Distance with simultaneous focus): Deep |

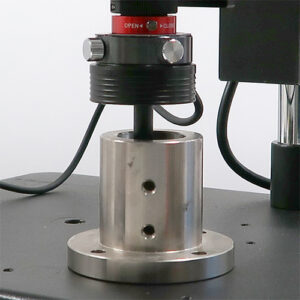

●Observation of the inner walls of a U-shaped rail
| Observation Range: Narrow |
Observation Range: Wide |
| Depth of Field (Distance with simultaneous focus): Shallow |
Depth of Field (Distance with simultaneous focus): Deep |
The primary feature of this model
●Feature 1: Adoption of a 178° wide-angle lens (hole inspection lens)
The field of view is as wide as 178°.
As indicated below, the field of vision expands almost horizontally.

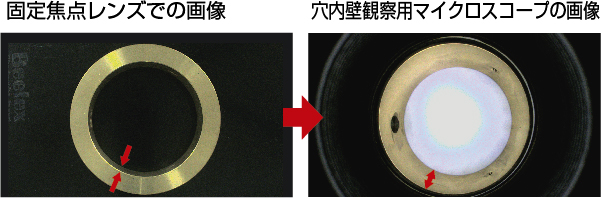

360° comprehensive one-shot observation capability
With a fish-eye perspective, it is possible to observe the entire interior surface of the hole.
● Feature 2: Utilization of a fish-eye lens with deep depth of field
You can observe the interior walls of the hole without inserting a lens into the cavity
The aperture ranges from φ8mm to φ100mm, with a depth comparable to the aperture (e.g., around 100mm for φ100mm).
The lens inherently features a substantial depth of field, further adjustable via an aperture mechanism.
You can notice a greater depth of field compared to images captured with fixed-focus lenses.
●Feature 3: No need to insert into the target object, making it less prone to buffering
The Hole Lens has a wide field of view of 178°, eliminating the need to insert it into the hole.
Even if inserted, it only goes a few millimeters, greatly reducing the risk of damaging the target object.
In the case of deep holes, you can observe the inner walls by inserting the lens slightly into the hole.
●Feature 4: Compatible with C-mount lenses
●Feature 5: Utilizes ultra-small diameter LED ring illumination corresponding to the hole diameter
 |
Extremely small diameter LED ring lighting ideal for hole diameters of φ50 to 100 mm and depths of 100 mmH (for PHLH200BA) |
