Industrial videoscope X2000

X2000 Main System:

・7″ LCD touchscreen

・IP54 protection

・HDMI / USB Type-C / Wi-Fi connectivity

・Remotely controllable via our VideoscopeNow app

・File management, annotation, and comment functions

・Compatible with Insight report assist software

・S-HD images and HD videos

Insertion Probes:

・Various diameters available (2.8 mm/3.9 mm/ 6 mm)

・Various lengths available (6 mm probe up to 10m)

・IP 67 equal level waterproof / Scratch-resistant / Heat resistant (100 degree)

・New 6 mm Dual Camera probes in varies length for all purpose inspections

Product Inquiry 028-3911-2006

Best image viewing experience

The X2000 features a 7″ LCD touchscreen the delivers not only crisp and clear images but
also features a manual exposure which works very similar to that of a smartphone. This
makes it not only very helpful but also very convenient to use.

Wide view angle 7 “IPS TFT-LCD

Manual exposure by fingertip

Specifications

Features		Description
Display		7″ LCD, Resolution 1024×600
Power supply	AC adapter	100~240V, 12V 2.5A, 50-60 Hz
Power supply	Battery	Rechargeable Li Battery 3.6V 9800 mAh, approximately operation time: 5hrs, charging time: 4hrs.
Video output	HDMI	TYPE D; HDMI 1.4 transmitter with 3D format and CEC support
	USB	USB TYPE C, supporting USB full- speed and high-speed data transmission
	Wi-Fi	IEEE802.11 B/G/N
Operating temperature		With battery power 0℃ ~ 45℃ With AC adapter power 0℃ ~ 35℃
Drop resistance		1m
Relative humidity		Max 95% non-condensing
Storage temperature		IP57
Insert tubes interchangeability		6.0mm HD series; 3.9mm series

Software features
Image features		Digital zoom 3X, 10 steps brightness control
Sharpness control		Clarity-on / off
Annotation		Maximum 10 annotation marks can be built in a pic, maximum 24 characters in each mark
Timestamp / watermark		For snapshot / video recording (on / off)
Image management		User defing pic / video folder available

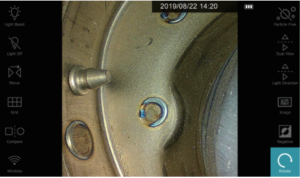

On-screen display functions		Light boost, light off, mirror, grid, compare, wireless, particle free, dual view, light direction, negative, auto white balance
White balance		Manually adjustable (default, calibration, custom)

Recording management
Storage media		SDHC up to 32G
Thumbnail image display		9 grid album mode
Overlay		YY/MM/DD h:m, battery capacity
Still image	Resolution	2560×1440(S-HD); 1280x720O(HD)
Still image	Recording format	.jpg
Video	Resolution	1920×1080
	Recording format	.mov / H.264
	Audio inqut	Built-in-microphone (on/off)
Frame rate		30FPS

Excellent user interface

Front/side Dual view at once (with mirror)

Supports image sharpness fine tuning

Rotate the live view clockwise to get the best visual angle

3 stage temperature warming & auto shut down function

Patented particle free effect (with mirror)

Editable image annotation

Advanced file management

Never get lost again in the countless numbers of images and videos you take. The X2000 HD offers a file management system which allows you sort your footage into folders, to tag them and to add notes or annotations. This makes keeping track of all your inspections easy and convenient.

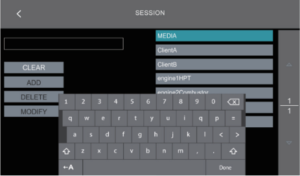

Custom build file folder by “SESSION”

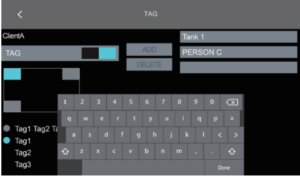

Custom photo overlay test by ‘TAG’

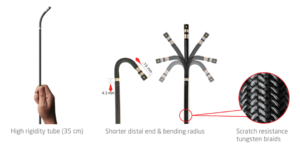

Smooth mechanic articulation control system Move & lock joystick

・100°C resistance camera tip (6.0 mm tube)
・Ultra-luminance front LED
・IP67 level waterproof and oil proof

Versatile output connectivity

・HDMI port to TV/monitor for HD quality image viewing
・USB type C port to PC as Web-Cam or SD card reader
・Wi-Fi connect to mobile devices to view and share pictures. Dedicated APP download (VideoscopeNOW): App Store, Google Play
