14.0-Megapixels camera, English and Japanese language supported EI310
The reason why EI-series is selected:
1.Low price
2.Easy set-up
3.Simple control by PLC
Multi-detector Camera System Visual Inspection EI310
What is the EI310 Image and Visual Inspection software?
It is easy operation and low-cost image inspection software, in order to connect to 1-5 pieces of USB cameras commercially available and for all purpose. You can easily build the image inspection system with low cost. If you register a good quality product image as a master image, the image inspection software can detect the difference in shape, color, position, and about dimensions and/or angle at the same time, from the inspected image.
Video demonstrations of the software are below!
[Free trial software evaluation version!]
We will send you a free CD demo version.
Or download here. Language support: Japanese and English.
※The demo version does not carry the multi-camera function.
※Some PCs may not start with only the USB key that you purchased. Please download this in that cases.Download here.
Features
Easy Setting
- It have the same function of comparing the result of color, shape, dimension and angle measurement. Furthermore multiple cameras can be used.
Color and shape
- Registration of master display
Noise removal, position correction etc. settings
Color adjustment
Perform the premission settings.
- search setting
Display result, successful rate and number of search.
Dimension and angle
- Can frame multiple measurement areas and option can be selected by each frame.

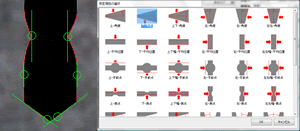

48 measurement options.(Show as the picture below)
By combining 2 options together, result of any error can be showed.
- Only need USB camera and computer. Start the checking by a single click.
- By connect to the I/O unit option, seach can be done by foot switch.
- By connect to the I/O unit option and PLC, inline auto search will be available.
Specification
General Specification
- Model Number
- EI310
Camera
Lens
Lighting
Feature of the pre-installed software for Simplified Measurement
- Observe live video
- Simultaneous display of live image and save screen
- Save the still image (JPEG, BMP)
- Pause the observed image (Freeze Function)
- Measure the distance between two points
- Supported OS: WindowsXP, Vista, 7, 8 and 10 (Compatible with 32bit and 64bit)
- * Saving and reading calibrated data while measure
※Glass scale for the calibrations is option.
A powerful measuring software MeasurePRO
A measuring software developed by our company.
Able to display multiple crosslines, grids, saved thumbnails and comments. Can export the data to Excel.
-
Measuring types
[Distance between 2 points]
[3 Points Angle]
[4 Points Angle]
[Diameter]
[Distance between 2 circles]
[Perpendicular line]
[Area] -
Features
・Export to excel
・Show multiple crosslines
・X, Y axis scales
・Show grid lines
・Display both saved image and live image on separate screens
・Insert comments
MeasurePRO-Ex
Measuring software with focus stacking function
Standard accessories are two glass scales for calibration (GS - 0.2, GS - 0.5).
Measure easily on the screen.
-
Measuring types
[Distance between 2 points]
[3 Points Angle]
[4 Points Angle]
[Diameter]
[Distance between 2 circles]
[Perpendicular line]
[Area] -
Features
・Focus stacking function
The powerful MeasurePRO and the function-rich MeasurePRO-Ex measurement software comparison
・Please refer to the table below for the availability of the functions you need
| MeasurePRO-Ex | MeasurePRO | |
|---|---|---|
| Measure distance between 2 points | ○ | ○ |
| Focus stacking | ○ | ✕ |
| Export to excel | ○ | ○ |
| Show thumbnails | ○ | ○ |
| Adjust screen magnification | ○ | ○ |
| Display crossline | Multiple | Multiple |
| Display grids | ○ | ○ |
| Display X, Y axis scales | ○ | ○ |
| Supports Windows XP、Vista、7、8 and 10 （32bit・64bit） | ○ | ○ |
Application demonstration
