Mounting example 1 (for small stand)
|
Example of mounting on a small stand
|
It is mounted as a substitute for a φ95mm observation plate
|
Mounting example 2 (for rotating XY table)
|
Rotating simple XY table
Mounting example for TK180-K
|
It is mounted as a substitute for a φ95mm observation plate.
|
The translucent illumination for small stands can be used simultaneously with the rotating simple XY table (TK180-K).
Merely attaching translucent illumination to the stand makes it very difficult to align the target object. This becomes especially challenging with magnified images.
By using the rotating simple XY table (TK180-K) together with the stand, it becomes easy to align the target object, allowing for easy observation of pinhole detection and the presence of burrs after hole processing. This leads to increased work efficiency.
Mounting example 3 (for other stands)
The cord emerges from the rear center of the illumination.
Therefore, some adaptation is required to use it together with our standard stands.
Mounting example 4 (example of standalone use with RD-95T)

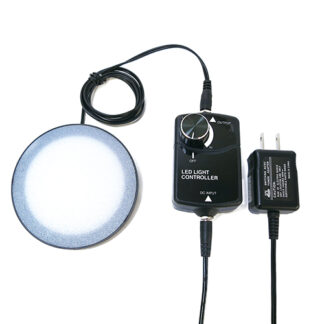

The translucent illumination RD-95 cannot be placed flat due to the cable emerging from the bottom, but it can be made to stand independently by attaching rubber feet to the bottom. Once it can stand independently, it can be placed on any flat surface.
