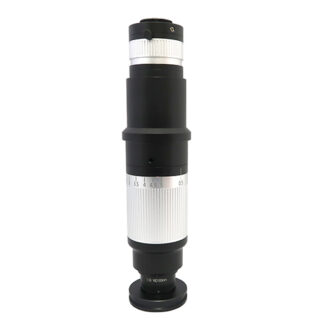

● High-resolution zoom lens compatible with 4K cameras
● Zoom ratio of 10! (Optical magnification x0.5-x5.0)
Covering a wide range of magnifications
● Compatible with C-mount cameras up to 2/3 inch sensor size
● Lens diameter: φ50mm
● We also offer high-resolution 4K microscopes equipped with this lens.
|
Conventional Lens
The area of blurriness near the border of black and white is wider, and the rise of the brightness profile is gradual. |
High-Resolution 4K Lens
The clear area near the border of black and white is wider, and the rise of the brightness profile is sharp. |
|
Therefore High-definition images can be achieved! |
| Model number | SDS-KFZ (For this product) |
SDS-KFZH (If you want to increase the magnification further) |
| Optical magnification | x0.5-x５.0 | x1.0-x10.0 |
| When attached to 2/3 inch Camera Field of view (H × V) | 16.0×12.8 mm (optical magnification x0.5) 1.60 mm×1.28 mm （optical magnification x5.0) |
8.0×6.4mm (optical magnification x1.0) 0.80×0.64 mm (optical magnification x10.0) |
| When attached to 1/2 inch Camera Field of view (H × V) | 12.0×9.6 mm (optical magnification x0.5) 1.20×0.96 mm (optical magnification x5.0) |
6.0×4.8mm (optical magnification x1.0) 0.60×0.48 mm (optical magnification x10.0) |
| When attached to 1/3 inch Camera Field of view (H × V) |
8.0×6.4 mm (optical magnification x0.5) |
4.0×3.2mm (optical magnification x1.0) 0.40×0.32 mm (optical magnification x10.0) |
※ Maximum and minimum field of view when attaching a camera with a 1/1.7 inch sensor.
